10kg Sand Gravel Aggregate Double Bucket Bagger Machine

Product Details:
Place of Origin: China
Brand Name: JL
Model Number: DCS-TB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotion
Packaging Details: Plywood Box
Supply Ability: 100 sets

Detail Information

Name: Double Bucket Bagging Machine Precisions: ±0.2%FS
Weighing Range: 500-6000 Package(g): 500-12kg
Power Supply: 220/50 Power (KW): 6.6
Application: Food, Medical, Chemical
High Light:

10kg Double Bucket Bagging Machines


10kg Aggregate Bagging Machine


10kg Double Bucket Bagger Machines

Product Description

Sand Gravel Aggregate Granular Double Bucket Bagging Machine, Animal Feed Pellets Packing Machine



This is fully automatic packing machine suit for packing granulate item like rice, beans, seeds, peanut, sugar, detergent powder etc. The machine is with the function of automatic filmforming and making bags, automatic bag sealing, date coding etc.

The single scale has one weighing bucket and the double scale has two weighing buckets. The double scales can discharge materials in turn or in parallel. When discharging materials in parallel, the measuring range and error are doubled.


Technical parameters



Weighing rang


30-250 100-1000 200-2000 500-6000 5-25kg 10-50kg



30-500 100-2000 200-4000 500-12kg 5-50kg 10-100kg
Single scale error ( g) ≤±1 ≤±1 ≤±2 ≤±4 ≤±15 ≤±30



42-15 38-9 35-9 22-6 15-4 13-4

Supply power


220/50 220/50 220/50 220/50 220/50 220/50

Total power

( W)

500 500 500 500 600 700

Aiir pressure


No No No No 0.4-0.6 0.4-0.6



160 180 200 220 270 350



740×760×1920 870×830×2100 920×860×2200 940×860×2340 1340×1250×3200 1600×1800×3500


Note: models below 6kg are fed by Double Vibrators, one large feeding fast feeding and one small feeding slow feeding, and the amplitude is continuously adjustable. For models of 25kg and above, the large feeding is gravity feeding, the small feeding is vibration feeding, and the small feeding amplitude is continuously adjustable. For models above 25kg, the bag opening is equipped with bag clamping device.


Working principle


Dcs-gs series weighing machine is composed of feeding bin, vibrator, weighing bucket, funnel, electrical box, body and other parts. During operation, the packaged materials fall into the large and small feeding vibrators from the feeding bin. Under the control of microcomputer, two vibrators vibrate at the same time to send the materials into the weighing bucket. The electronic scale dynamically monitors the weight of the materials in the weighing bucket. When the material weight is close to the weighing value (packaging specification), The large vibration stops and the small vibration continues. When the material weight is equal to the weighing value, the small vibration stops. After the weighing is completed, wait for bagging. After bagging, the weighing bucket opens the door for unloading, and then automatically closes the door and feeds again.

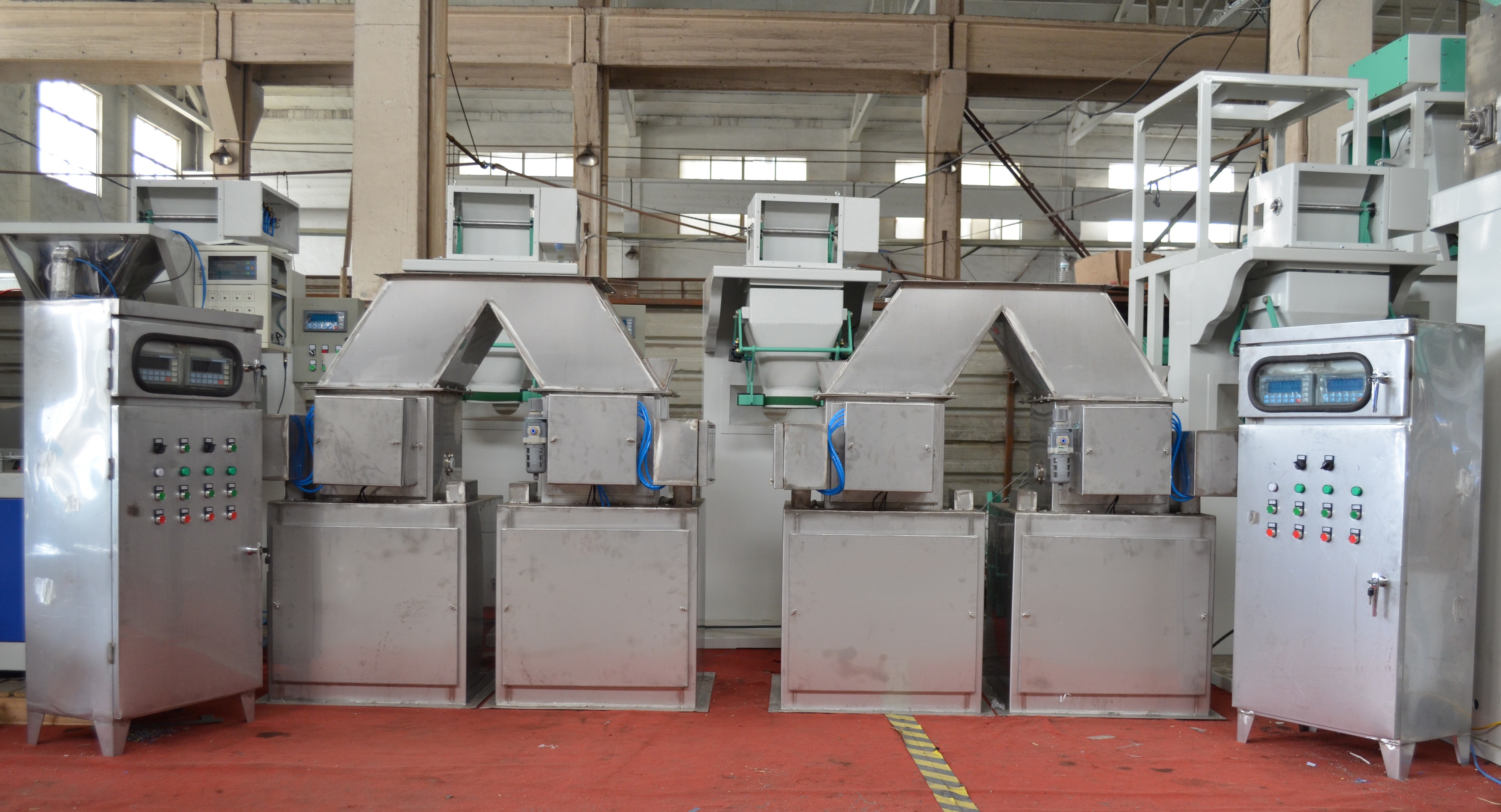

10kg Sand Gravel Aggregate Double Bucket Bagger Machine 0




10kg Sand Gravel Aggregate Double Bucket Bagger Machine 1
