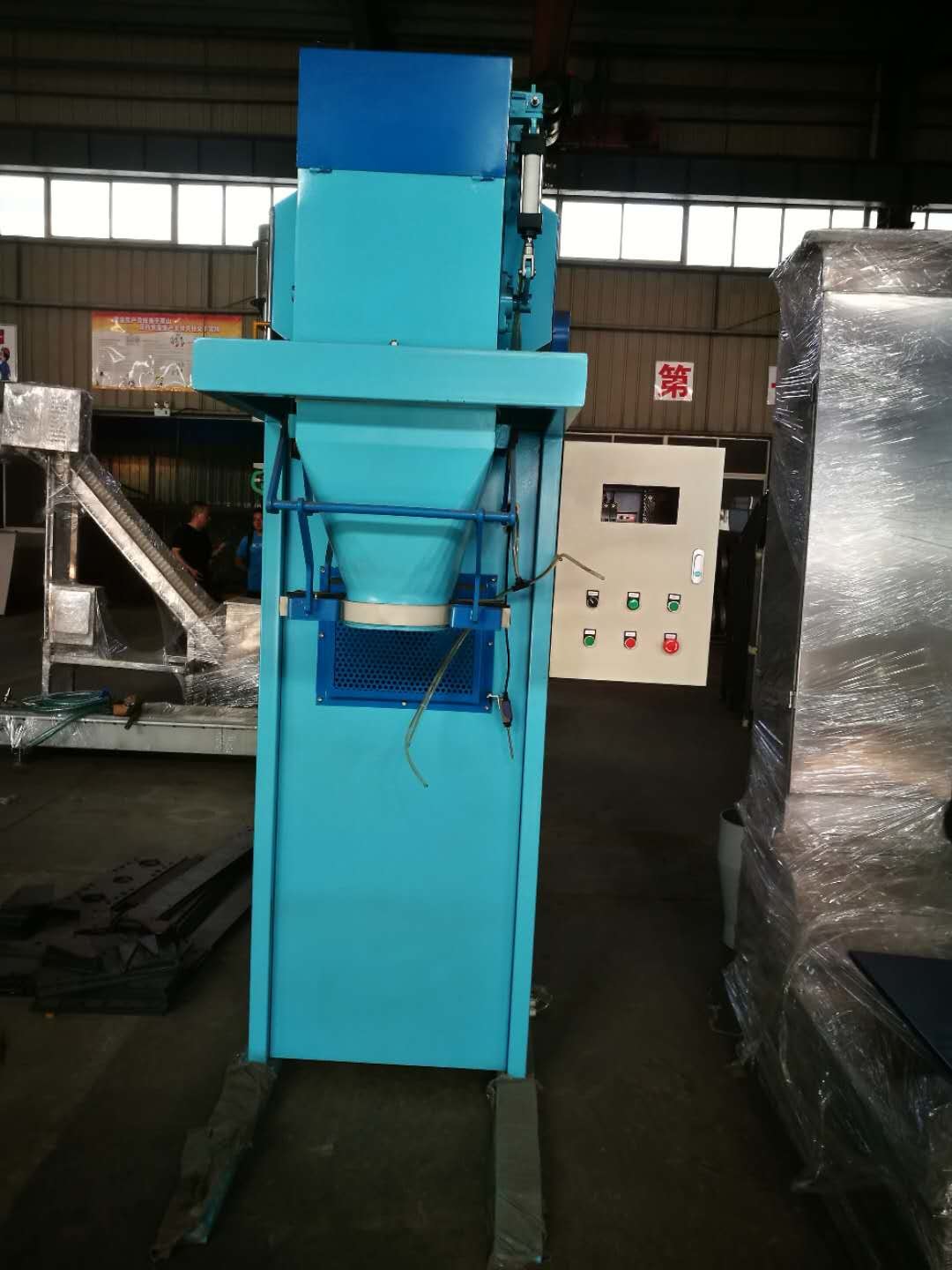

Cement Automatic Sandbag Filling Machine Filler Volumetric Feeder

Product Details:
Place of Origin: China
Brand Name: JL
Model Number: DCS-2BF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotion
Packaging Details: plywood box
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100 sets

Detail Information

Name: Cement Bag Filling Machine Weighing Range: 1-5, 5-10, 10-25,25-50 Kg/bag, Customized Needs
Packing Capacity: 150-200bag/hour, 180-250bag/hour Precisions: ±0.2%FS
Power Supply: 220V/380V, 50HZ, 1P/3P ( Customized) Working Pressure: 0.4-0.6Mpa
Power (kw): 3.2/4/6.6
High Light:

cement bag filler


Cement Bag Filling Machine


automatic sandbag filler machine

Product Description

Cement Bag Filling Machine,Sand Packing Machine, Volumetric Feeders, Automatic Sandbag Filling Machine
Product introduction and features:
1. The belt feeder adopts anticorrosive belt.
2.  Automatic sewing and thread breaking function: photoelectric induction automatic sewing after pneumatic thread cutting, saving labor.
3. Conveyor adjustable lifting: according to different weight, different bag height, conveyor height can be adjusted.
4. DCS-BF mixture bag filler needs manual assistance in bag loading, automatic weighing, bag clamping, automatic filling, automatic conveying and bag sewing.
5. The belt feeding mode is adopted, and the large and small gates are controlled pneumatically so as to achieve the required flow rate.
6.  It can solve the problem of some special chemical raw material packaging, which has wide application range and simple operation.
7. It adopts high progress sensor and intelligent weighing controller, with high precision and stable performance.
8. The whole machine is made of stainless steel (except for electrical components and pneumatic components), with high corrosion resistance.
9. Electrical and pneumatic components are imported components, long service life, high stability.
Applicable materials:
briquettes, organic fertilizers, mixtures, premixes, fish meal, extruded materials, secondary powder, caustic soda flakes.

Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 150-200bag/hour 180-250bag/hour 350-500bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Working pressure 0.4-0.6Mpa
Weight 700kg 800kg 1500kg

The above parameters are only for your reference, the manufacturer reserves the right to modify the parameters with the development of the technology.
Cement Automatic Sandbag Filling Machine Filler Volumetric Feeder 0Cement Automatic Sandbag Filling Machine Filler Volumetric Feeder 1
About Us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.

No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.

Cement Automatic Sandbag Filling Machine Filler Volumetric Feeder 2
