Fully Automatic Granule Packing Machine Particle Wood Pellet Bagger

Product Details:
Place of Origin: China
Brand Name: JL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 30 work days
Supply Ability: 100 set per month

Detail Information

Name: Granule Packing Machine Brand Name: Wuxi Jianlong
Precisions: ±0.2%FS Weighing Range: 1-5, 5-10, 10-25, 25-50 Kg/bag, Customized Needs
Weight: 700-1600kg Packing Capacity: 200-300bag/hour,250-400bag/hour,500-800bag/hour
Dimension (LxWxH)mm: The Size Can Be Customized According To Your Site.
High Light:

wood pellet bagging machine

,

auto granule packing machine

,

Granules Packaging Machine

Product Description

Animal Feed Bagger, Wood Pellet Bagger, Granule Packing Machine



Our company produces granules bagging machine DCS-GF, which is a fast quantitative packaging unit integrating weighing, sewing, packaging and conveying, which has been welcomed by the majority of users for many years. It is widely used in light industry, chemical industry, metallurgy, building materials, port, mining, food, grain and other industries.



Working principle

DCS-GF granules bagging machine needs manual bag loading. The bag is put on the discharging port of the bagger manually, and the bag clamping switch is turned on. After receiving the bagging signal, the control system drives the cylinder, and the bag gripper clamps the bag. At the same time, the feeding mechanism is started to send the materials from the silo to the packaging scale. The feeder is of gravity feeding mode. When the target weight is reached, the feeding mechanism stops and the bag clamping device opens automatically, The package bag falls onto the conveyor automatically, and the conveyor transports the bag to the sewing machine. After the sewing and sealing, the bag is output backward to complete a bagging process.



Functional features

1. Manual assistance is needed for bag loading, automatic weighing, bag clamping, filling, automatic conveying and sewing;

2. Gravity feeding mode is adopted to ensure the bagging speed and accuracy through instrument control;

3. It adopts high precision sensor and intelligent weighing controller, with high precision and stable performance;

4. The parts in contact with materials are made of stainless steel with high corrosion resistance;

5. Electrical and pneumatic components are imported components, long service life and high stability;

6. The control cabinet is sealed and suitable for harsh dust environment;

7. Material out of tolerance automatic correction, zero point automatic tracking, overshoot detection and suppression, over and under alarm;

8. Optional automatic sewing function: photoelectric induction automatic sewing after pneumatic thread cutting, saving labor.



Model DCS-GF DCS-GF1 DCS-GF2
Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 200-300bag/hour 250-400bag/hour 500-800bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Dimension (LxWxH)mm 3000x1050x2800 3000x1050x3400 4000x2200x4570
The size can be customized according to your site.
Weight 700kg 800kg 1600

The above parameters are only for your reference, the manufacturer reserves the right to modify the parameters with the development of the technology.

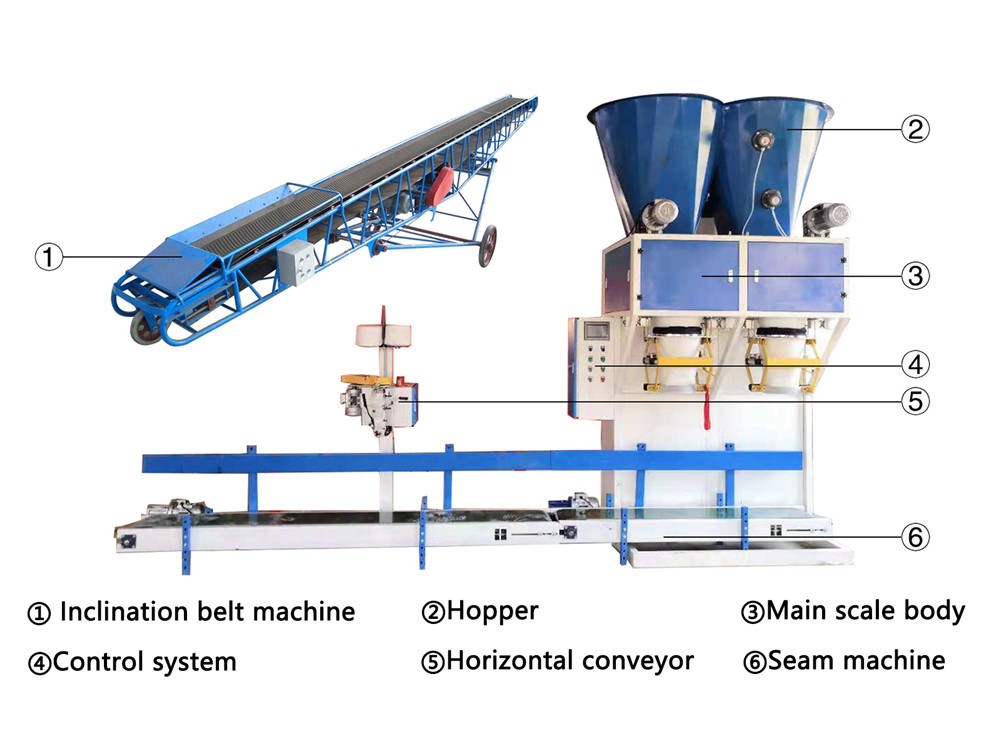

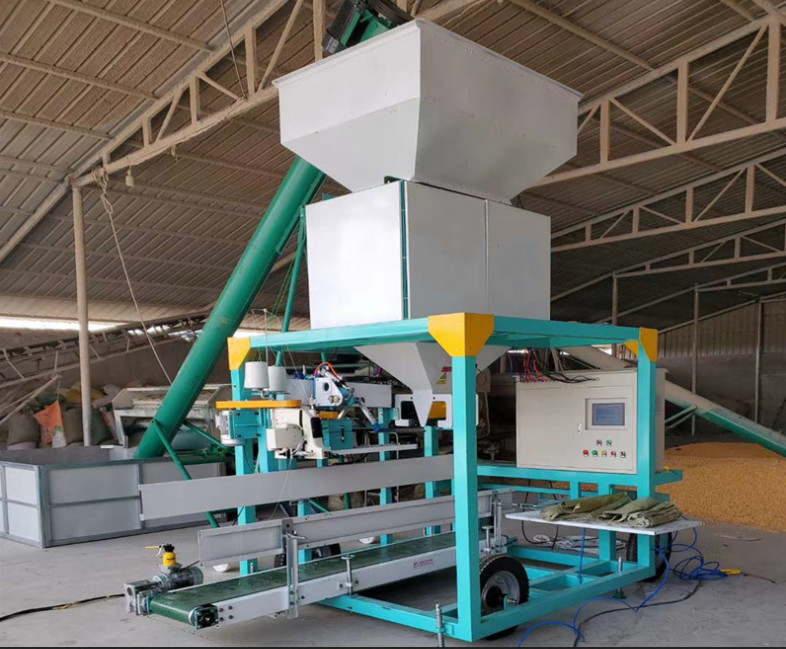

Fully Automatic Granule Packing Machine Particle Wood Pellet Bagger 0Fully Automatic Granule Packing Machine Particle Wood Pellet Bagger 1

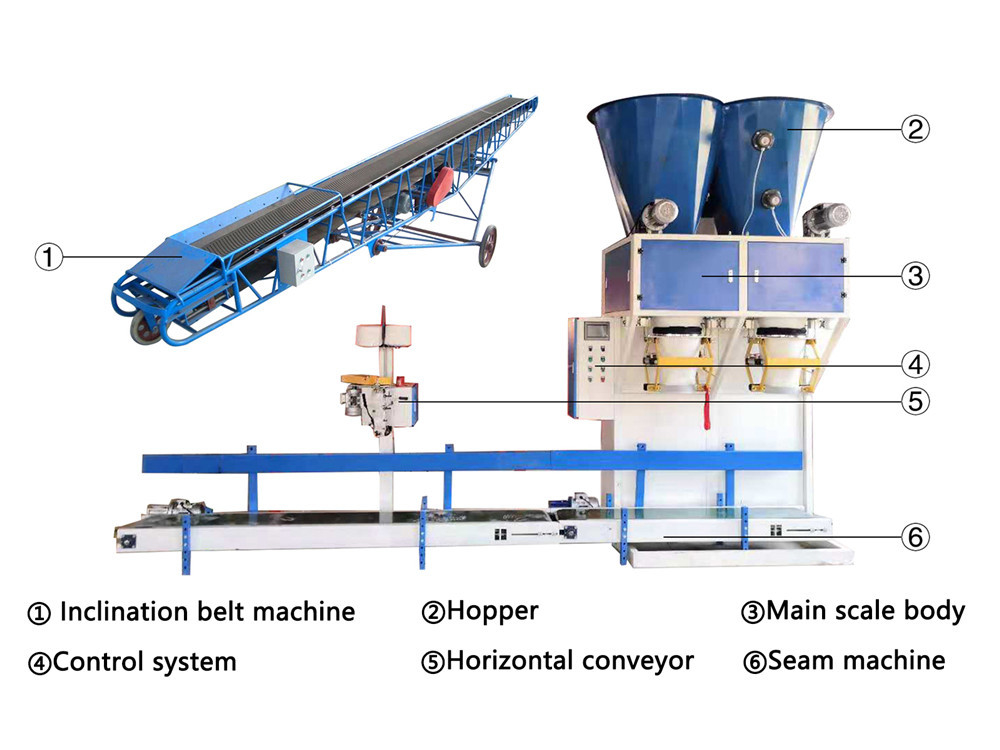

Fully Automatic Granule Packing Machine Particle Wood Pellet Bagger 2
