Vacuum Gravity Valve Bag Filler Machine Valve Port 50Kg

Product Details:
Place of Origin: China
Brand Name: JL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotion
Packaging Details: plywood box
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100 sets

Detail Information

Name: Valve Bagging Machine Function: Filling, Sealing
Packing Capacity: 3-6 Bags / Min (Note: Different Material Packaging Speed Is Different) Accuracy Level: +/-0.5%
Weighing Range: 20-50Kg/bag Aggregate In Packaging Materials: ≤Φ5mm
Graduation Value: 10g Working Power Supply: AC 220V/50Hz 60W (Or According To The Customer's Requirement)
Working Gas Source:: Air Pressure ≥0.5-0.6Mpa
High Light:

vacuum valve bag filler


vacuum gravity valve bag fillers 50Kg


valve port machine 50Kg

Product Description

Automatic valve port bag packing machine, valve bag filler


Product description:

Valve bagging machine DCS-VBAF is a new type of valve bag filling machine that has accumulated more than ten years of professional experience, digested foreign advanced technology and combined with China's national conditions. It has a number of patented technologies and has completely independent intellectual property rights. The machine adopts the most advanced low-pressure pulse air-floating conveying technology in the world, and completely uses low-pressure pulse compressed air to uniformly and horizontally convey the material on the ventilating device through a super-abrasion air-floating device with a certain angle, and the material passes through self-adjusting double The stroke gate valve controls the quick feeding and finishing of the material, and the automatic quantitative packaging of the material is completed through the ceramic discharge nozzle and the microcomputer plus the touch screen control. The packaging materials cover a wide range. All powders with a moisture content of less than 5% and a mixture of powder and aggregate (≤5mm) can be automatically packaged, such as industrial micropowder products, powdered pigments, powdered chemical products, flour and food. Additives, as well as ready-to-mix dry mortars (special mortars) of all varieties.


Technical Parameter:

Packing capacity 3-6 bags / min (Note: different material packaging speed is different)
Accuracy level +/-0.5%
Weighing range 20-50Kg/bag
Graduation value 10g
Aggregate in packaging materials ≤Φ5mm
Working power supply AC 220V/50Hz 60W (Or according to the customer's requirement)
Air pressure ≥0.5-0.6Mpa
Air consumption 0.2m3/min Dry compressed air
Dust collection air volume ≥2000m3/h
Ceramic nozzle size Φ63mm (can be adjusted according to customer needs)
Valve pocket pocket size ≥Φ70mm
Feed port size Φ300mm
Standard dimensions

1500mm × 550mm × 1000mm

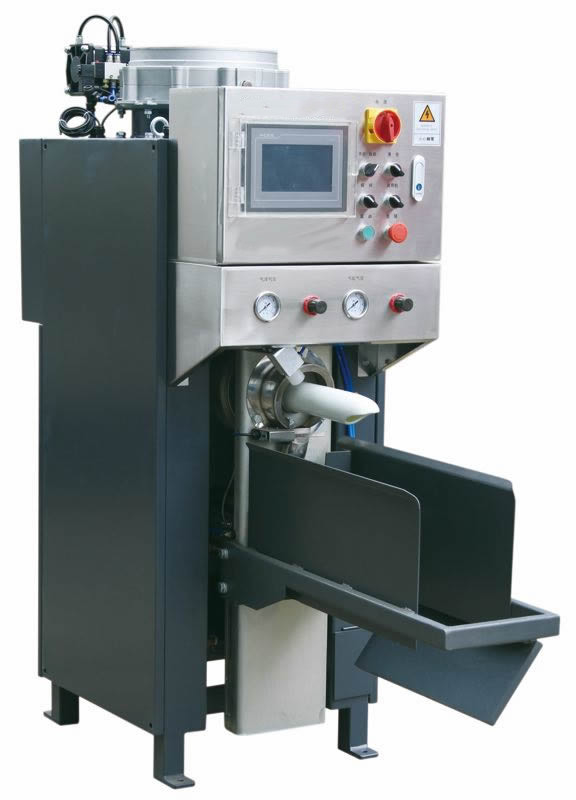

Vacuum Gravity Valve Bag Filler Machine Valve Port 50Kg 0
